Air Shower Unit

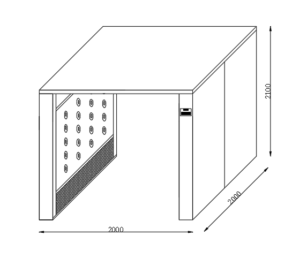

- Outter Size: 2000*2000*2100 mm
- Inner Size : 1400**2000*2020 mm
- Voltage: 110/220/380 V 50/60 Hz
- Nozzle: 24pcs (Left 12 pcs Right 12pcs )
- Material: SS201 / SS304 / SS316 / Power Coated Plate
- Function : Inteligent Englih Voice Electrical interlock
H13 / H 14 HEPA ISO class 5 – ISO class 10
Air Shower Price: 1500-2500 USD
Air Shower Unit
Some air showers are installed inside clean workshops. Since the original building already has a door, in order to quickly allow personnel or products to pass through the air shower and reduce the time wasted by opening and closing the door, this air shower is designed as a doorless air shower. Or, due to the limited space for installing the air shower, it needs to be designed as a separate air shower unit. This can effectively save installation space and also has the function of dust removal.
| Model | KW-AS-CS | Air Velocity | 25m/s ±20% |
|---|---|---|---|
| External Size | 2000*2000*2100 | Side Blowing | Left + Right Ceiling(Optional) |
| Inner Size | 1400*2000*2020 (mm) | HEPA filter | 99.99% at 0.3 micron |
| Persons per circle | 3-4 | Pre Filter | G4 |
| Unit Construction | SS316/304/201/ Galvanized steel with epoxy coating | Air Interlock | Electro Magnetic lock |
| Voltage | 110v-440v 50/60 Hz | Door type | No Door |
| Power | 2.2kw | Controller | PLC (Intelligent voice control system) |
| Nozzle | 24 | Showing time | 0-99 s (Adjustable) |
Available Options:
- 1. Anti-ESD ionizer system .
- 2. UV lamp
- 3. Auto sliding door / high speed shutter door
- 4. Access control system
- 5. Shoe sole cleaning system
- 6. Ceiling side blowing
- 7. All custom size are available upon request .
Kiwin Air Shower Features
- All 304 stainless steel, plate thickness 1.0mm, outstanding rust resistance .
- Double door electronic interlocking, both doors cannot be opened at the same time .
- Transparent tempered glass, safe and convenient .
- PLC control system, intelligent voice, induction air blowing , Silent fan, low noise and high power .
- HEPA filter(s) provide 99.99% Typical efficiency for particle sizes of 0.3 microns.Primary filter. are washable .
- Easy to install and easy to maintain.
- After pressing the emergency stop, the double door interlock is released.
- Digital display differential pressure gauge, the equipment status can be known at a glance.
- Good sealing performance prevents external air from entering the clean area and causing cross-contamination.
- Can be retrofitted, sole cleaning machine, access control, automatic hand disinfection machine, ultraviolet germicidal lamp, static electricity elimination equipment.
