Pass Box
- Material: SS304 / SS316 / Power Coated Plate
- Interlock: Mechanical interlock
Electronic interlock optional. - Germicidal lamp: UV germicidal lamp
- Glass: Double-layer 4mm tempered glass
- Plug: European standard, British standard, American standard
- ISO class 100 – class 100000
- Size: are available in the following sizes

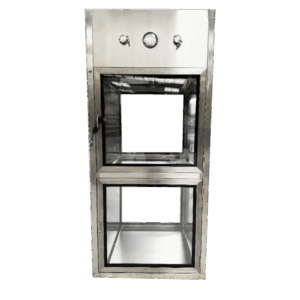

Cleanroom Pass Thru（Mechanical Interlock）
The cleanroom pass box is the most effective device to prevent contamination. It is characterized by a double-door interlock, which effectively reduces the number of staff members entering the purification room due to the transport of goods, and prevents external air pollution. The complete set of equipment is economical and is the best transfer device for the purification room. This equipment is widely used in microtechnology, biological laboratories, pharmaceutical factories, hospitals, food processing industries, LCDs, electronics factories, and other places that need air purification.
| Exterial Size | Inner Size | Exterial Size | Inner Size |
|---|---|---|---|
| 400*400*400mm | 380*340*320mm | 620*560*580mm | 500*500*500mm |
| 500*500*500mm | 380*440*420mm | 720*660*680mm | 600*600*600mm |
| 600*600*600mm | 480*540*520mm | 920*860*880mm | 800*800*800mm |
| 800*800*800mm | 680*740*720mm | 1120*960*1080mm | 1000*1000*1000mm |
| 1000*1000*1000mm | 880*940*920mm | 1320*1160*1280mm | 1200*1200*1200mm |
Available Options:
- 1. Electromagnetic interlock optional
- 2. Intercoms added on both sides
- 3. The floor-standing transfer window has no bottom and can pass a trolley
- 4. The transfer window has a bottom and a small stainless steel slope is added to the bottom of the outer side to allow a trolley to pass
- 5. Manual bi-swing door
- 6. The bottom is reinforced to pass heavy objects
- 7. Sterilization lamps are added on all four sides
- 8. Pencil Coving at Internal Working Area all four Inside Corners
- 9. Two layers inside a cabin
- 10.Two doors on two layers, two cabins
- 11. Customized Size are accetable .
