Static Pass Box

Pass box is an auxiliary equipment in the clean room, mainly used for the transfer of small items between clean areas and clean areas, and between non-clean areas and clean areas. The doors on both sides are equipped with mechanical or electronic interlocking devices to ensure that the doors on both sides cannot be opened at the same time to prevent cross contamination, so as to reduce the number of clean room door openings and reduce the pollution in the clean area.

Dynamic Pass Box

Dynamic pass box are widely used in places with high cleanliness requirements, such as sterile production workshops in pharmaceutical factories, operating rooms and intensive care units in hospitals, chip manufacturing workshops in electronics factories, sterile filling workshops in food factories, biological laboratories, etc. In these places, Dynampic pass box can effectively prevent external pollutants from entering the clean area, ensure product quality and the accuracy of experimental results, and also help maintain the health and safety of staff.

Specifications of the Static Pass Box

Model External Size (W*D*H) Working Size(W*D*H) Voltage UV light Interlock Door
KW-PB-S400 400*380*400mm 280*320*320mm 110-240v 1 pc Mechanical interlcock Single door
KW-PB-S500 500*480*500mm 380*420*420mm 110-240v  1 pc Mechanical interlcock Single door
KW-PB-S600 600*580*600mm 480*520*520mm 110-240v 1 pc Mechanical interlcock Single door
KW-PB-S800 800*660*800mm 680*600*720mm 110-240v 1 pc Mechanical interlcock Single door
KW-PB-S1000 1000*1000*1000mm 880*940*920mm 110-240v 2 pcs Electronic interlock Bi-swing door
KW-PB-S1200 1200*1200*1200mm 1080*1140*1120mm 110-240v 2 pcs  Electronic interlock Bi-swing door

Kiwin Pass Box Featurs

Smart Control

Micro process-based board
Electromagnetic interlock, sterilization and blowing time are adjustable.

Shell Structure

Outside and inside panel are used 1.0mm thickness SS201/SS304/SS316 stainless steel or powder coating steel panel .

UV light

light (LED) Not less than 300 LUX

HEPA Filter

HEPA filter(s) provide 99.99% Typical efficiency for particle size of 0.3 microns.

Electricty Supply

Our pass box support single phase voltage . Ranged from 110v-240v 50/60hz

Air circulation

AISI304 st.st. perforated side for return air, built-in primary filter

DOP/PAO

The stainless steel PAO/DOP inspection port is reserved on one side for testing HEPA filer .

Glass

Double-layer 4mm tempered glass on both sides

Packing

Standard export wooden box packaging to effectively ensure transportation safety.

  • HEPA Filter with hot melt technology, which conforms to EU-13/EU-14 Grade at supply position
  • Centrifugal Motor/Blower are used to minimize the vibrations and noise.
  • Electromagnetic interlocking to ensure only one side door will be opened at a time
  • Microprocessor based digital LCD Controller displays all safety information on one screen easy monitoring all parameters.
  • This can be easily installed on the wall between the classified room and unclassified room.
  • ISO class 5 air cleanliness
1
3
4
5
6
7
8
2

Pass Box (Optional Function)

Pass box with -floor mounted. The pass box has no bottom and a trolley can enter esaily .

L-shaped corner pass box, the door opening direction can be customized for workshops with limited space.

The door can be moved up and down to facilitate the conveyor belt to pass through the transfer window.

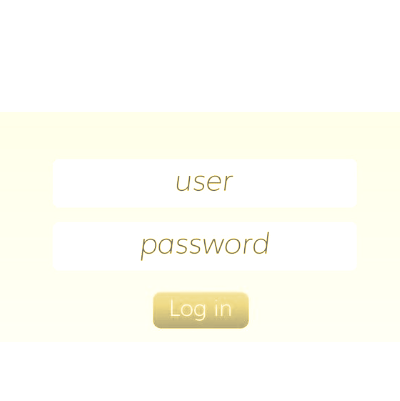

The controller is password protected and non-management personnel cannot adjust parameters.

Sterilization on all four sides, protected by germicidal lamp guard plate.

Rollers are installed at the bottom of the transfer window to facilitate the placement and removal of heavy goods.

With intercom function, it is convenient for internal and external personnel to communicate.

Pass Box with Ramp  – Floor.Easy for strollers to get in and out.

How to get the cost of Pass Box machine ?

ModalExternal Size (W*D*H)Inner Size (W*D*H)VoltagePrice (EXW)
Static Pass Box
500*480*500mm380*420*420mm110v-240v 50/60 hz100-200$
600*580*600mm480*520*520mm110v-240v 50/60 hz100-200$
800*660*800mm680*600*720mm110v-240v 50/60 hz200-400$
Static Pass Box
520*460*480mm400*400*400mm110v-240v 50/60 hz100-200$
620*560*580mm500*500*500mm110v-240v 50/60 hz100-200$
720*660*680mm600*600*600mm110v-240v 50/60 hz200-400$
920*860*880mm800*800*800mm110v-240v 50/60 hz200-400$
Dynamic Pass BOX
585*484*950mm400*400*400mm110v-240v 50/60 hz800-1200$
685*584*1050mm500*500*500mm110v-240v 50/60 hz800-1200$
785*684*1150mm600*600*600mm110v-240v 50/60 hz1000-1500$
985*884*1350mm800*800*800mm110v-240v 50/60 hz1000-1500$

Do You Have Any Questions?

If you have any other question about the air shower or pass box,please feel free to contact our team ,we will reply you in 24 hours .

The pass box is a device used to transfer items between clean rooms or areas of different cleanliness levels. The double-door interlocking design avoids cross-contamination of air caused by opening the door directly, ensuring the cleanliness of the environment.

Double door interlock: ensure that both doors cannot be opened at the same time to prevent contamination;
High efficiency filtration: built-in HEPA filter to purify the air during the transfer process;
Durable material: 304 stainless steel or electrostatic sprayed plastic shell, corrosion-resistant and easy to clean;
Optional functions: UV sterilization, touch screen control, pressure difference monitoring, etc.

It is suitable for places that require strict dust and bacteria control, such as pharmaceutical laboratories, food processing plants, electronic clean rooms, and hospital operating rooms, and is used to transfer samples, tools, materials, etc.

Installation steps: open a hole in the wall → fix the box → connect the power supply → debug the interlocking system → test the sealing;

– Ensure that the wall’s load-bearing capacity matches the size of the transfer window;
– Install away from vibration sources to avoid affecting the sealing;
– Leave enough space for later maintenance.

– Wipe the inner wall with a dust-free cloth dipped in 75% alcohol or neutral detergent;
– The UV sterilization function can be turned on regularly (recommended 1-2 times a week);
– Avoid using corrosive solvents.

Usually it should be replaced every 1-2 years, depending on the frequency of use and the cleanliness of the environment. If the air volume drops significantly or the pressure difference alarm sounds, it needs to be replaced immediately.

– Check whether there is any foreign object caught;
– Confirm whether the interlocking system is faulty and try to restart the power supply;
– Contact after-sales personnel to repair the circuit or mechanical structure.

Cleanliness level (such as ISO 5, ISO 8);
Size requirements(size of items to be delivered);
Functional requirements(whether sterilization, code scanning, etc. are required);
Installation method (embedded or wall-mounted).

If you have no assembling experience , no worry , most of our clients can assemble it successfully with our manual and online guidance ,you just need to find a employee who understand the electric , we offer words manual and video teaching . Or if you need we can send our engineer to your country to help you install it , but you need to pay all the extra cost .

Our pass box warranty is 1 year for the electrical parts (blower , electrical board ,control panel ) , if the parts are broken caused by our quality , we can send you new one for free . Normally , when we  send you the new air shower , we will give you a set of consumable parts .

Yes ,we can do the door to door service for you , but if you can find a local forwarder in your country , if will be help you reduce some cost .

Yes ,we are the pass box manufacturer , and have the rich experience of making the custom size pass box , auto door customize , size customize , and materials customize, function customize .

The production days of an pass box is 7-10 days , and the delivery days are different according to the port . if you want to know  the accurate date , pleases confirm with our sales  manager .

Get a Request Quote Now!

    Raw material selection

    Before all boards enter the factory, they must undergo strict sampling inspections from material to thickness, gloss, and rust resistance.

    Advanced Tools

    The advanced laser cutting machine ensures that the cutting error of the plate is at the millimeter level,

    HEPA Filter

    Efficiency:PAO 99.99%,99.995% at 0.3µm
    EN1822,Class H13 / H14
